| Brand Name: | YNF |
| Model Number: | 4206345 |
| MOQ: | 1 PCS |
| Price: | contact our sales |
| Delivery Time: | 3 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |

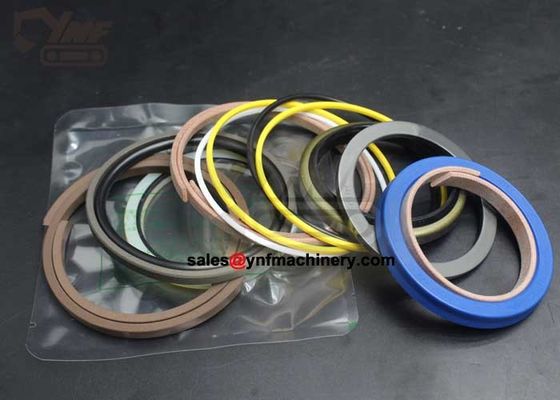

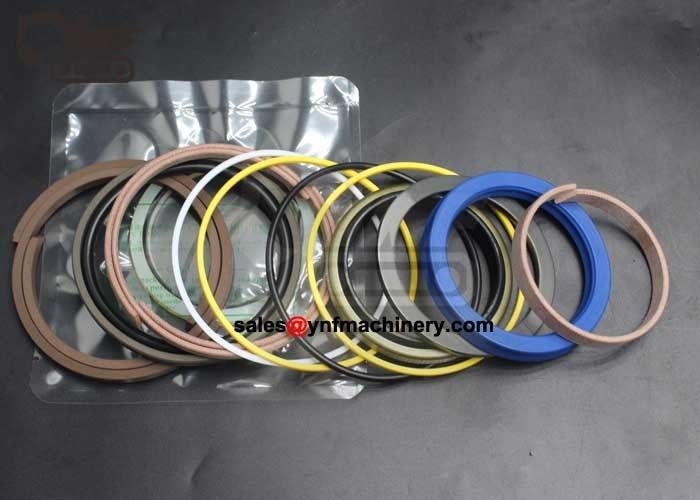

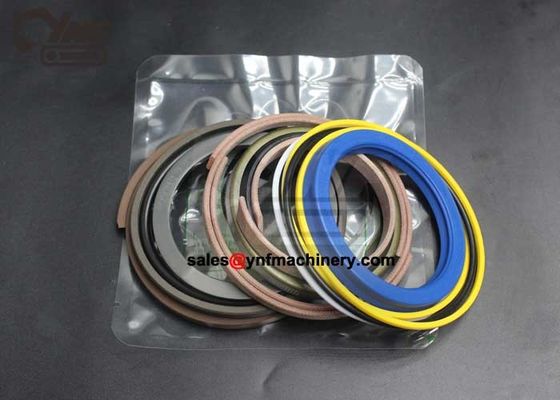

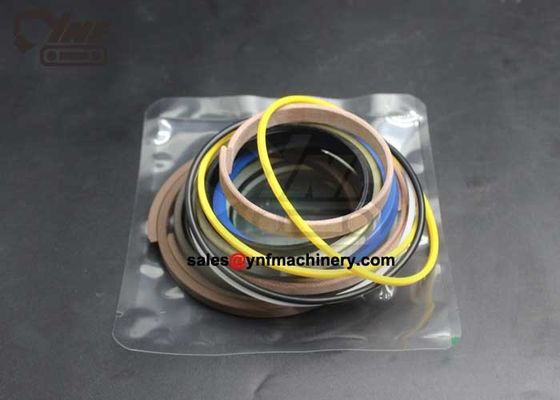

EX100 EX120 Hydraulic Bucket Cylinder Seal Kit 4206345 EX100, EX100M, EX100W, EX100WD, EX120
4206345 KIT;SEAL Hitachi parts EX100, EX100M, EX100W, EX100WD, EX120
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 4187909 | [1] | CYL.;BUCKET | 0310600B | |
| 1-32. | 4206336 | [1] | CYL.(PIPELESS) | |
| 1. | 4227371 | [1] | TUBE;CYL.(WITH BUSHING) | |
| 1A. | 0310601 | [1] | TUBE;CYL. | |
| 1B. | 0310513 | [1] | BUSHING;PIN | |
| 2. | 4227372 | [1] | ROD;PISTON(WITH BUSHING) | |
| 2A. | 0310602 | [1] | ROD;PISTON | |
| 2B. | 0174403 | [1] | BUSHING | |
| 3. | 0310603 | [1] | HEAD;CYL. | |
| 4. | 0310604 | [1] | BUSHING | |
| 5. | 4510494 | [1] | RING;RETAINING | |
| 6. | 0225613 | [1] | RING | |
| 7. | 0225611 | [1] | PACKING;U-RING | |
| 8. | 0225612 | [1] | RING;BACK-UP | |
| 9. | 0310605 | [1] | RING | |
| 10. | 0225610 | [1] | RING;WIPER | |
| 11. | A811090 | [1] | O-RING | |
| 12. | 0310606 | [1] | RING;BUCK-UP | |
| 13. | 0163406 | [8] | BOLT;SOCKET | |
| 14. | 0310607 | [1] | PISTON | |
| 15. | 0310608 | [1] | RING;SEAL | |
| 16. | 0310609 | [2] | RING | |
| 17. | 0310610 | [2] | RING | |
| 18. | 0310611 | [1] | NUT | |
| 19. | 0310612 | [1] | SCREW;SET | |
| 20. | 0111818 | [1] | BALL | |
| 21. | 0310613 | [1] | SHIM | |
| 31. | J75481 | [1] | FITTING | |
| 32. | J75581 | [1] | FITTING | |
| 54. | 0310614 | [1] | PIPE | |
| 55. | 0310615 | [1] | PIPE | |
| 56. | 4509181 | [2] | O-RING | |
| 57. | M340825 | [8] | BOLT;SOCKET | |
| 58. | 0310616 | [2] | CLAMP;PIPE | |
| 59. | 0310617 | [2] | BOLT | |
| 60. | 0208516 | [2] | WASHER;SPRING | |
| 63. | 0178820 | [4] | BOLT | |
| 64. | A590910 | [4] | WASHER;SPRING | |
| 65. | 0310618 | [2] | BAND ASSEMBLY | |
| 66. | 0310619 | [2] | BAND | |
| 100. | 4206345 | [1] | KIT;SEAL |
