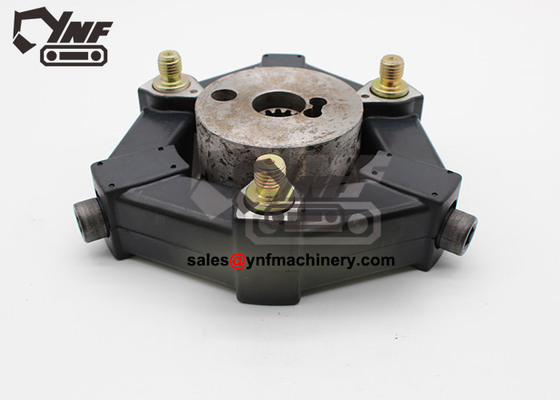

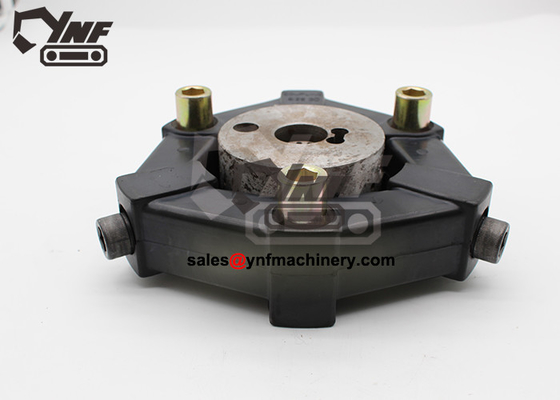

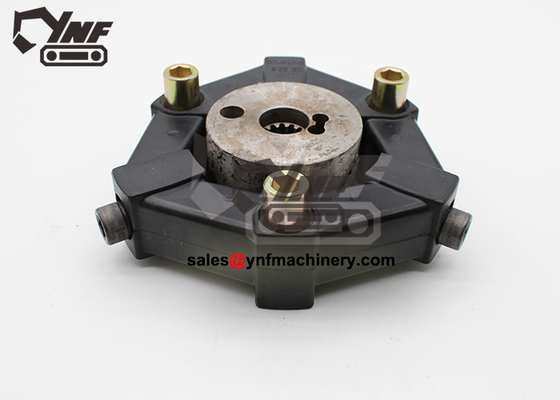

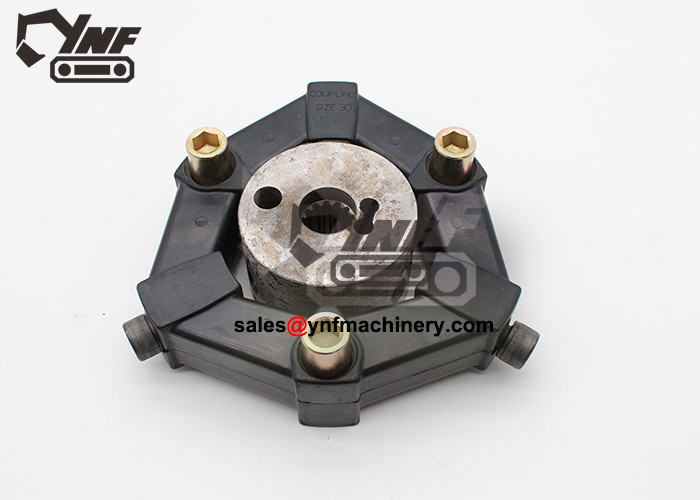

26A/AS Coupling For Excavator High Quality Rubber Coupling Fits 210CW

Description :

Products Show

Packaging & Delivery

More Parts Information:

Pos. Part No Qty Parts name Comments
0. 9210213 [1] Hydraulic Pump
1. ........ [1] Housing 1027184 NLA
2. 9218033 [1] Pump GEAR SUB FOR 4278696
3. 3063840 [1] Gear
4. 3055594 [1] Shaft
5. 19M8337 [2] Cap Screw SUB FOR M341030
6. 12M7135 [2] Lock Washer 10 MM SUB FOR 984054
7. 4114402 [2] Washer
8. 6008X [2] Ball Bearing SUB FOR 958740
9. 962002 [1] Snap Ring
10. 40M7090 [1] Snap Ring SUB FOR 991725
11. ........ [1] Plate NAME
12. 4369148 [1] Oil Line
13. ........ [1] Hydraulic Pump
14. 37H99 [2] Screw 0.100" X 1/4" SUB FOR M492564
15. 4293950 [2] Fitting
16. M800650 [1] Packing SUB FOR 957366
17. FYB00000114 [1] Coupling SUB FOR 4416605, USE WITH 2036807 OR 2043207
18. 4702172 [1] Hub SUB FOR 4463992 OR 4687331, ALSO ORDER (2) 4702173
19. ........ [2] Set Screw USE WITH 4463992 OR 4687331, SUB 4702173, ALSO ORDER 4702172, 4334899 NLA
19. 4702173 [2] Set Screw USE WITH 4702172
20. 34M7117 [4] Spring Pin 5 X 10 MM SUB FOR 4101345
21. 4463993 [4] Insert
22. 4334894 [4] Bolt
23. 4654760 [1] Coupling SUB FOR 4463994
24. 8058352 [1] Gasket
25. 19M7489 [6] Cap Screw M16 X 45 SUB FOR J901645
26. 12H294 [6] Lock Washer 5/8" SUB FOR A590916
30. 3063842 [1] Gear
31. 3063843 [1] Gear
32. AT152406 [2] Snap Ring SUB FOR 4274552
34. 34M7061 [2] Spring Pin 8 X 20 MM SUB FOR 4099290
43. 4310055 [1] Seal
44. 40M7090 [1] Snap Ring SUB FOR 991725
61. FYB00001633 [1] Gauge SUB FOR 4438059
62. 9743977 [1] Dipstick Tube
63. 9742779 [1] Gasket
64. 19M7647 [2] Cap Screw SUB FOR M340816
68. 4265372 [1] Sensor
69. 4306888 [1] O-Ring
70. 24M7054 [1] Washer 6.400 X 12 X 1.600 MM SUB FOR A590106
71. 19M8553 [1] Cap Screw SUB FOR M340616
86. 4234782 [1] Plug
87. 0309805 [1] Pipe Plug SUB FOR 4092534
87A. CH11570 [1] O-Ring 13.800 X 2.400 MM (0.543" X 3/32") SUB FOR 4509180
88. 4451036 [1] Seal Kit

Coupling Information:

The function of the coupling is to connect the two shafts (the driving shaft and the driven shaft) in different mechanisms to make them rotate together and transmit torque. Some couplings also have buffering and vibration reduction.
According to different working conditions, the coupling needs to have the following properties:
(1) Portability. The mobility of the coupling refers to the ability to compensate for the relative displacement of the two rotating components. Factors such as manufacturing and installation errors between connected components, temperature changes during operation, and deformation under load all place requirements on portability. Movable performance compensates or relieves additional loads between shafts, bearings, couplings and other components due to relative displacement between rotating components.
(2) Buffering. For occasions where frequent load starts or working load changes, the coupling needs to have elastic elements for buffering and vibration damping to protect the prime mover and the working machine from being damaged or not damaged.
(3) Safe, reliable, with sufficient strength and service life.
(4) Simple structure, convenient assembly and disassembly and maintenance. Couplings are also called couplings. A mechanical component used to firmly connect the driving shaft and the driven shaft in different mechanisms to rotate together and transmit motion and torque. Sometimes it is also used to connect shafts and other parts

Guangzhou XIEBAGN MACHINERY CO., LIMTED

specialized in:

couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.

And, Our company also supply:

Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.

We always try our best for all our customers and make it better and better. Welcome!
