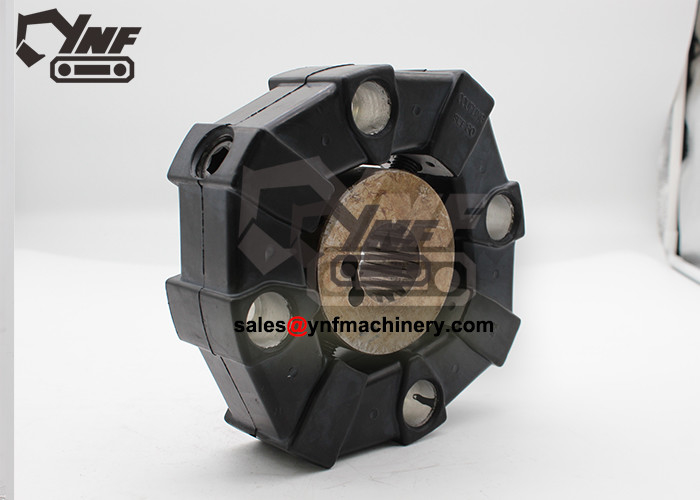

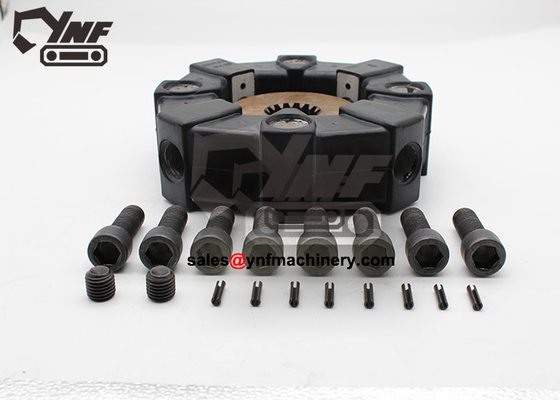

Doosan Excavator Parts Coupling High Quality Natural Rubber Coupling DX380LC-3

Description :

Products Show

Packaging & Delivery

Products imformation:

Pos. Part No Qty Parts name Comments
2. 210204-00029 [1]
20. S6510800 [1] RING,RETAINING
21. 401106-00226 [1]
22. 2.114-00175 [1] SHIM
23. 2.120-00611 [1] SCREW;LOCKING
24. 2.120-00624 [3] SCREW;LOCKING
25. 2.109-00192 [2] BEARING;PLAIN ROLLER
27. 2.405-00154 [1] SHAFT;KEY
2A. K9001909 [1] ROTARY GROUP;SECTION
2Aa. 2.410-00138 [1] CYLINDER
2Ab. K9001910 [1] PIN;CENTER
2Ac. K9001911 [7] PISTON & PISTON RINGS
2Ac1. *NA00796 [1] PISTON
2Ac2. *NA00986 [2]
2Ad. 2.114-00064 [1]
2Ad. 2.114-00065 [1]
2Ad. 2.114-00066 [1]
2Ae. 2.453-00025 [4] CUP SPRING
2Af. 2.412-00224 [1] PLATE;RETAINING
2Ag. K9001916 [14] SCREW;PAN HEAD
2B. K9001913 [1] SHAFT;DRIVE
2C. 2.114-00167 [1] SHIM
2C. 2.114-00168 [1] SHIM
2C. 2.114-00169 [1] SHIM
2D. 250201-01408 [1]
2E. 2.180-01029 [1] PLATE;BACK-UP
2E. 2.180-01030 [1] PLATE;BACK-UP
2E. 2.180-01031 [1] PLATE;BACK-UP
2E. 2.180-01032 [1] PLATE;BACK-UP
2E. 2.180-01033 [1] PLATE;BACK-UP
2E. 2.180-01028 [1] PLATE;BACK-UP
2E. 2.180-01026 [1] PLATE;BACK-UP
2E. 2.180-01027 [1] PLATE;BACK-UP
2F. K9001914 [1] RING;RETAINING
2G. 2.109-00264 [1] BEARING;UNIT TAPERED-ROLLER
2H. 2.109-00248 [1] BEARING;TAPERED-ROLLER
3. 210204-00030 [1]
3A. K9001909 [1] ROTARY GROUP;SECTION
3Aa. 2.410-00138 [1] CYLINDER
3Ab. K9001910 [1] PIN;CENTER
3Ac. K9001911 [7] PISTON & PISTON RINGS
3Ac1. *NA00796 [1] PISTON
3Ac2. *NA00986 [2]
3Ad. 2.114-00064 [1]
3Ad. 2.114-00065 [1]
3Ad. 2.114-00066 [1]
3Ae. 2.453-00025 [4] CUP SPRING
3Af. 2.412-00224 [1] PLATE;RETAINING
3Ag. K9001916 [14] SCREW;PAN HEAD
3B. K9001917 [1] SHAFT;DRIVE
3C. 2.114-00170 [1] SHIM
3C. 2.114-00171 [1] SHIM
3C. 2.114-00172 [1] SHIM
3C. 2.114-00173 [1] SHIM
3C. 2.114-00174 [1] SHIM
3D. 250201-01409 [1]
3E. 2.180-01026 [1] PLATE;BACK-UP
3E. 2.180-01027 [1] PLATE;BACK-UP
3E. 2.180-01028 [1] PLATE;BACK-UP
3E. 2.180-01029 [1] PLATE;BACK-UP
3E. 2.180-01030 [1] PLATE;BACK-UP
3E. 2.180-01031 [1] PLATE;BACK-UP
3E. 2.180-01032 [1] PLATE;BACK-UP
3E. 2.180-01033 [1] PLATE;BACK-UP
3F. K9001914 [1] RING;RETAINING
3G. 2.109-00265 [1] BEARING;UNIT TAPERED-ROLLER
3H. 2.109-00248 [1] BEARING;TAPERED-ROLLER
4. 400910-00134 [1]
4A. 2.120-00829 [2] BOLT;SOCKET M10X20
5. *NA00911 [1] POMPE
7. K9001919 [1] GEAR
8. K9001920 [1] SHAFT;STUB

Products instruction:

Basic requirements for elastic coupling performance: 1. Large bearing capacity and sufficient strength. The maximum allowable torque of the coupling is required to be more than 3 times the rated torque. 2 It has a strong compensation (radial, angular, axial) effect, and the smaller the reaction force generated during the deviation compensation, the better. 3 It has high elasticity and high flexibility, which can reduce the amplitude of shock and vibration to the allowable range, and should have the function of slowing vibration and shock in the direction of rotation. 4. Reliable work and stable performance. Couplings requiring rubber elastic elements should also have good heat resistance, not easy to age, and have a long service life. 5. The coupling must have an insulation resistance of more than 100 ohms and can withstand a voltage of 2kV. 6Easy to install, maintain and replace.

Company information:

Guangzhou XIEBAGN MACHINERY CO., LIMTED

specialized in:

couplings, rubber mounts, gera parts, hydraulic seals and seal kits for hydraulic hammers, rock breakers, hydraulic excavators,wheel loaders, and JCB badkhoe loaders.

And, Our company also supply:

Engine parts, hydraulic piston pump and hydraulic travel motor, Swing motor assembly and hydraulic component parts, electric parts, etc. Hydraulic hammer breaker parts with piston, cylinder, chisel, through bolt, side bolt, top bush, front head bushing,accumlator, valve, etc.

We always try our best for all our customers and make it better and better. Welcome!
